After participating in the course, you will be able to:
Understand types of automation controllers
Perform testing of a complex application, debugging of configuration and execution of logical errors
Understand timers, counters, math instructions, compare instructions, SQO
Communications
Description For the majority of the industrial process applications, Programmable Logic Controllers and Programmable Automation Controllers are the backbone of the industrial applications. Automations and robotics are distributed on the manufacturer's floor, or in a wide area e.g. oil industry.
This course will focus on understanding the Programmable Logic Controllers and Programmable Automation Controllers requirements, programming and implementation. The practical approach of the course is guaranteed by having students perform hands-on work on cutting edge technology communication networks.
Course Outline:
Programmable logic controllers
Programmable automation controllers

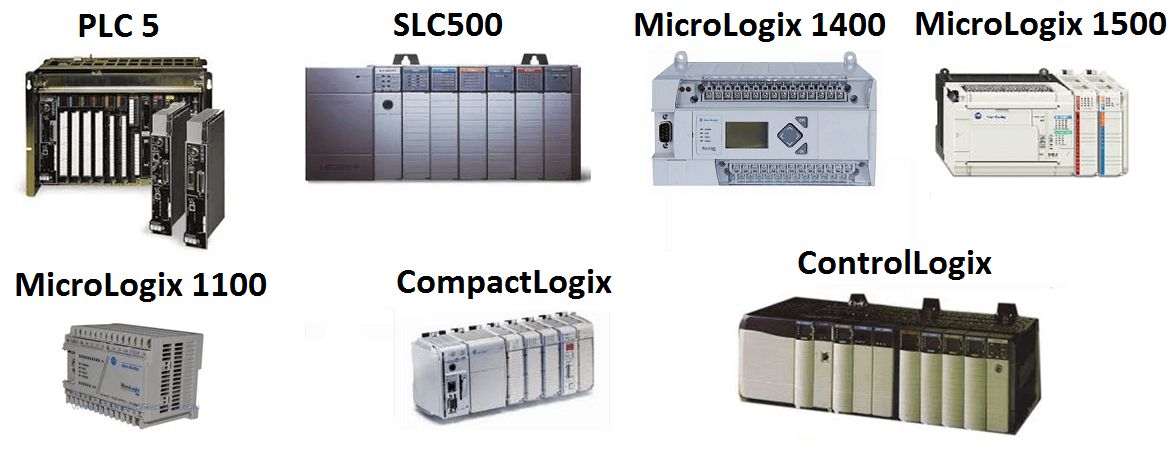

Rockwell automation software PLC & PAC family
Distributed control systems
Real time deterministic networks: Allen-Bradley & Rockwell networks
Setting up communication between the PLC & computer using RS-LINX
RSLogix 500 and Emulate 500
RSLogix 5000, debugging syntax errors
Bit instructions, application: latch & auto-latch; jog function
Timer and Counters
Who Should Attend: Managers • Engineers • Consultants • Technicians & Supervisors • Operations Personnel
